Popis

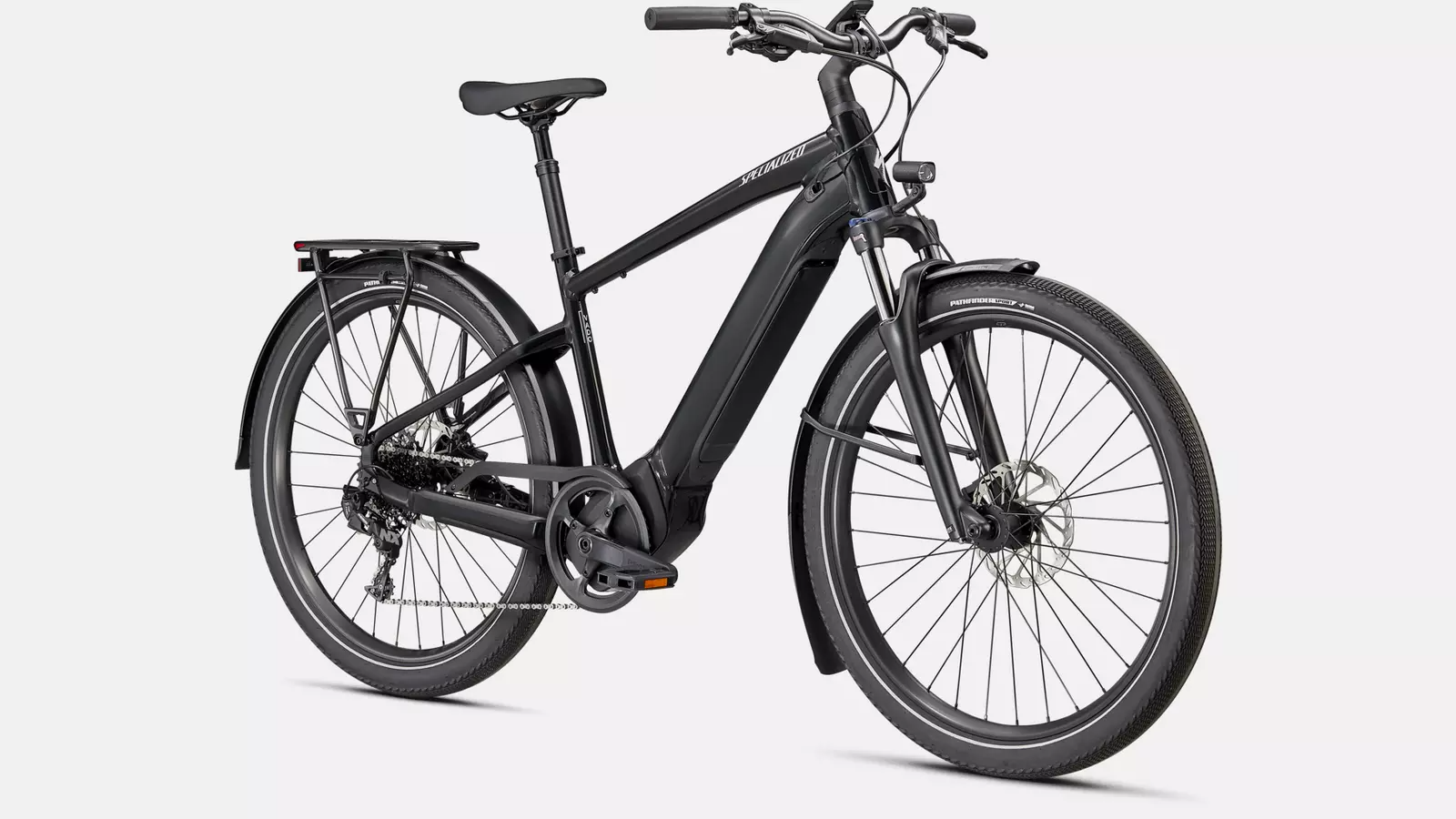

Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.
Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. We took learnings from the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.
- Turbo Full Power 2.0 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.
- MasterMind and Mission Control - The MasterMind display reveals all relevant info about your ride, allows real-time tuning of support levels, and enables over-the-air updates so that your bike gets better over time. MasterMind seamlessly integrates with the Mission Control app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
- Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.
- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
Technické specifikace
FRAMESET
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount
Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Seat Binder
Alloy, bolt-type, 34.9mm
COCKPIT
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebars
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Saddle
Rivo Sport, steel rails, 155mm
SeatPost
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
Grips
Specialized Body Geometry Contour, lock-on
BRAKES
Front Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
Rear Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
DRIVETRAIN
Rear Derailleur
SRAM NX, 11-speed
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-speed, 11-42t
Chain
KMC e11S, 11-speed w/ Missing Link™
Crankset
Custom alloy forged crankarms
Chainrings
Praxis, 48T, 104BCD
Chaincase
custom chaincover
ACCESSORIES
Pedals
Specialized Commuter w/ grip tape & reflectors
Headlight
Lezyne Ebike Hecto E65, 210 Lumen, 12V
Taillight
Spanninga Commuter Glow XE, 12V
Kickstand
Specialized kickstand, 40mm mount
Rack
Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
Fenders
Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
Bell
Simple bell
WHEELS
Rims
650b disc, double-wall alloy, pinned, 32h
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h
Rear Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Pathfinder Sport Reflect, 650Bx2.3
Rear Tire
Pathfinder Sport Reflect, 650Bx2.3
Inner Tubes
Schrader, 40mm valve
E-BIKE
Motor
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
UI/Remote
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 230V
Wiring Harness
Custom wire harness
* Specifikace se mohou změnit bez předchozího upozornění

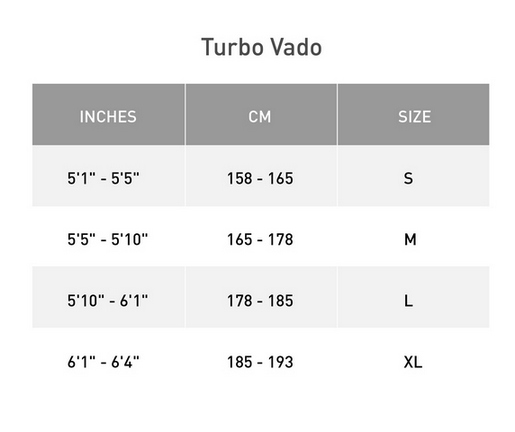

Geometrie
| S | M | L | XL | |
|---|---|---|---|---|
| Délka klik | 170mm | 170mm | 170mm | 170mm |
| Šířka řídítek | 680mm | 680mm | 680mm | 680mm |
| Délka představce | 60mm | 60mm | 75mm | 75mm |
| Šířka sedla | 155mm | 155mm | 155mm | 155mm |
| Délka sedlovky | 350mm | 350mm | 400mm | 400mm |
| Stack (Výška od vrcholu hlavové trubky po středové složení) | 625mm | 639mm | 652mm | 676mm |
| Dosah | 423mm | 444mm | 464mm | 481mm |
| Headtube Length | 135mm | 150mm | 165mm | 190mm |
| Headtube Angle | 68° | 68° | 68° | 68° |
| Výška středového složení | 285mm | 285mm | 285mm | 285mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm |
| Stopa kola (27,5 střed) | 96mm | 96mm | 96mm | 96mm |
| Délka vidlice (celá) | 480mm | 480mm | 480mm | 480mm |
| Vyosení vidlice (offset) | 44mm | 44mm | 44mm | 44mm |
| Vzdálenost přední osa – středové složení | 699mm | 724mm | 750mm | 777mm |
| Délka řetězové vzpěry | 470mm | 470mm | 470mm | 470mm |
| Rozvor | 1160mm | 1186mm | 1212mm | 1239mm |
| 585mm | 615mm | 645mm | 675mm | |
| Výška rámu v rozkroku | 735mm | 771mm | 771mm | 805mm |
| Délka sedlové trubky | 400mm | 450mm | 460mm | 500mm |
| 75.5° | 75° | 74.5° | 74° |
